Yamaha MT-09 2021+ Seat Slope Mod

Description

Fits all years of Yamaha MT-09 2021 – 2025+ (Gen 3 and Gen 4)

After the success of the seat slope mod for the ’15 -’20 FZ/FJ/MT/Tracers I worked with some members of the community to design a solution for the 2021+ MT-09 Seats.  The MT-09s suffer from the same forward slant as most of the other CP3 engined bikes.   This kit has been tested over 2 years before coming to market.

• JK3D.us Adjustable 6+2 mm Shim – Some riders prefer some forward lean on the seat for most spirted riding, and then a flatter seat for longer rides.  This kit will allow fairly easy adjustments based on riding preference.

Click on the images below for larger views.



Compatible with:

• Front OEM stock and Yamaha Comfort seat for the 2021+ Yamaha MT-09 models (including SP).   (Should work with most aftermarket seats that use the Yamaha Seat Pan) Works with the seat in the factory low or high positions.
• Not Compatible with Tracer 9 models

Materials:

Frame Shims- Industrial Grade Carbon Fiber PA12 Nylon – High temperature, high strength, high durability and chemically resistant material.
Rubber Bushings-  High temperature Easton 85A softness TPU rubber. This is to ensure the vibration isolation of the tank mounts is maintained.

Included with the kit:

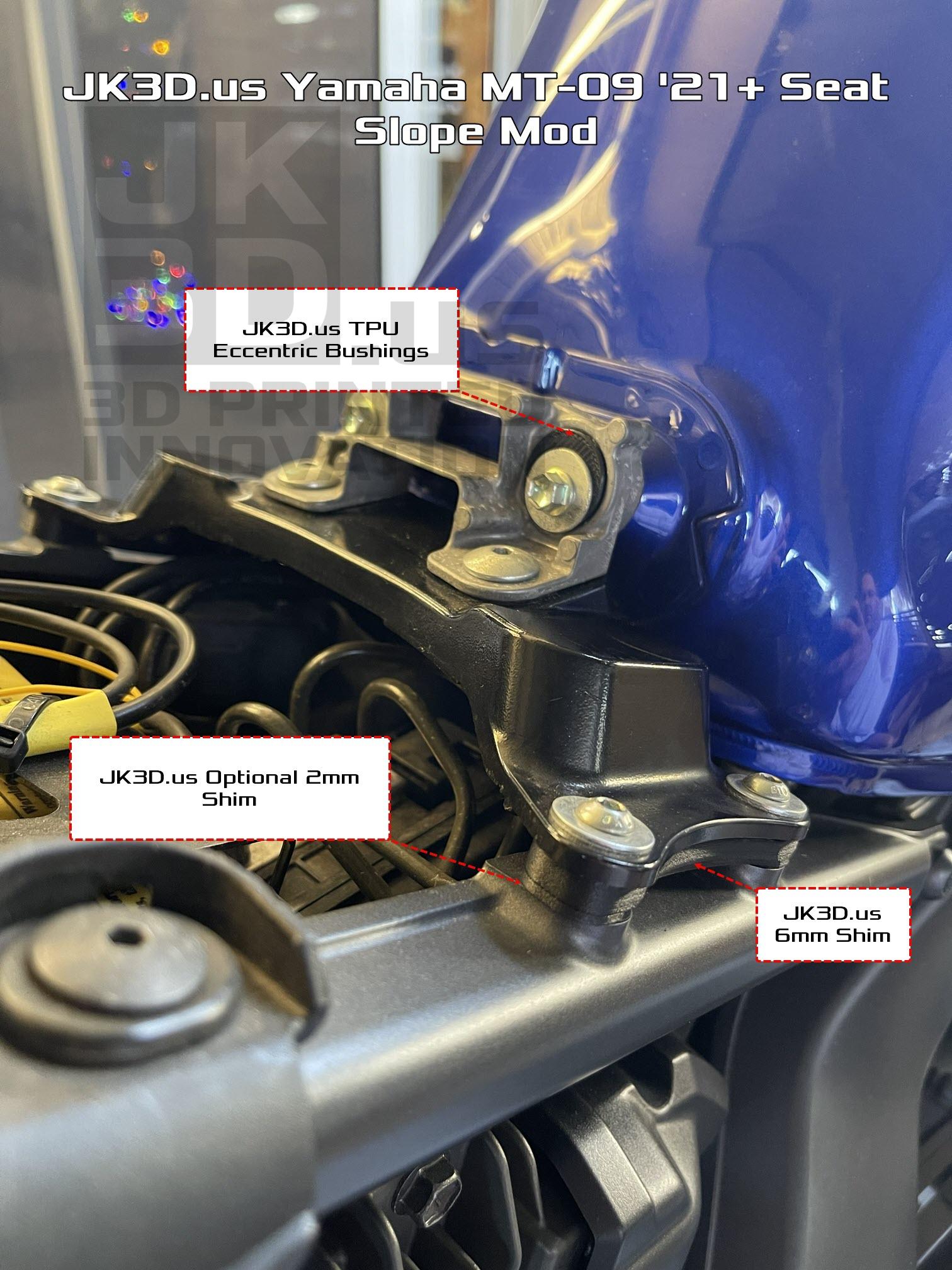

• 3x offset grommets for the rear mount of the fuel tank to the mounting plate, this allows the bracket to be moved upward without changing the tank rear height more than 3 or 4mm, a height change that is almost not visible and looks natural.  Printed in TPU rubber to retain the vibration isolation of the stock setup.  The stock spacer/washers slide into the TPU like the original bushings. (Only 2 are used in Gen 3 (2021 -2023 bikes)

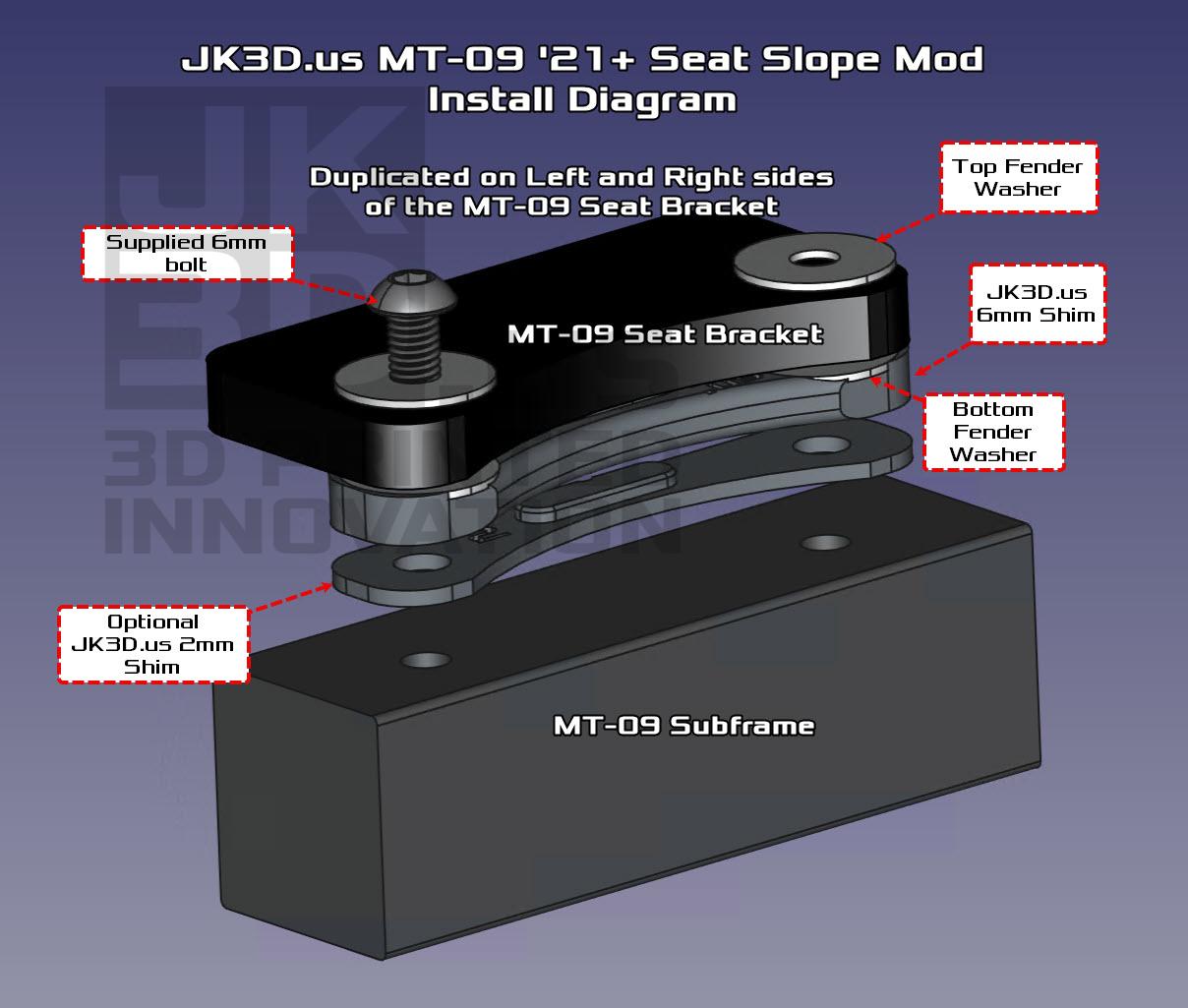

• 2x Seat Frame Brace Shims: Adjustable Kit: 6mm Pads, and 2mm shims for adjustability
• 4x 6mm Zinc Plated Alloy Steel bolts (Class 10.9)
• 4x 6mm  Shoulder Washers (for the JK3D.us Shim)
• 4x 6mm  Standard Washers (for the top of the seat bracket)
•

Tools required to install:

• 4mm Hex Wrench
• 10mm socket/wrench (for Gen 3 bikes)
• Blue Thread lock compound
• Torque Wrench (12Nm for the main bolts, 7Nm for the fuel tank bolts)



Click below for instructions on installing this kit:

Instructions for installing and setting up the Yamaha MT-09 Seat Slope mod kit.

Warranty/Guarantee:

JK3D will warranty the Yamaha FJ/FZ/MT/Tracer Seat Slope Mod from breaking or material failure for a period if 6 months from date of order.  (NOTE – Preview Orders cannot be returned, but do carry the same warranty).  To submit a warranty claim please email support@jk3d.us and include your order number, picture of the damage/issue, and description of the problem and JK3D will get you taken care of!  If you have any issues or challenges with this product please email me and we will find a solution!
